Power |
A: Engine: 220V diesel generator set, power 6KW 50HZ B: 18HP (13KW) Changchai single-cylinder water-cooled engine (electric start) |
Heating temperature |
0-280℃ |
Heating time |
30-50 minutes |

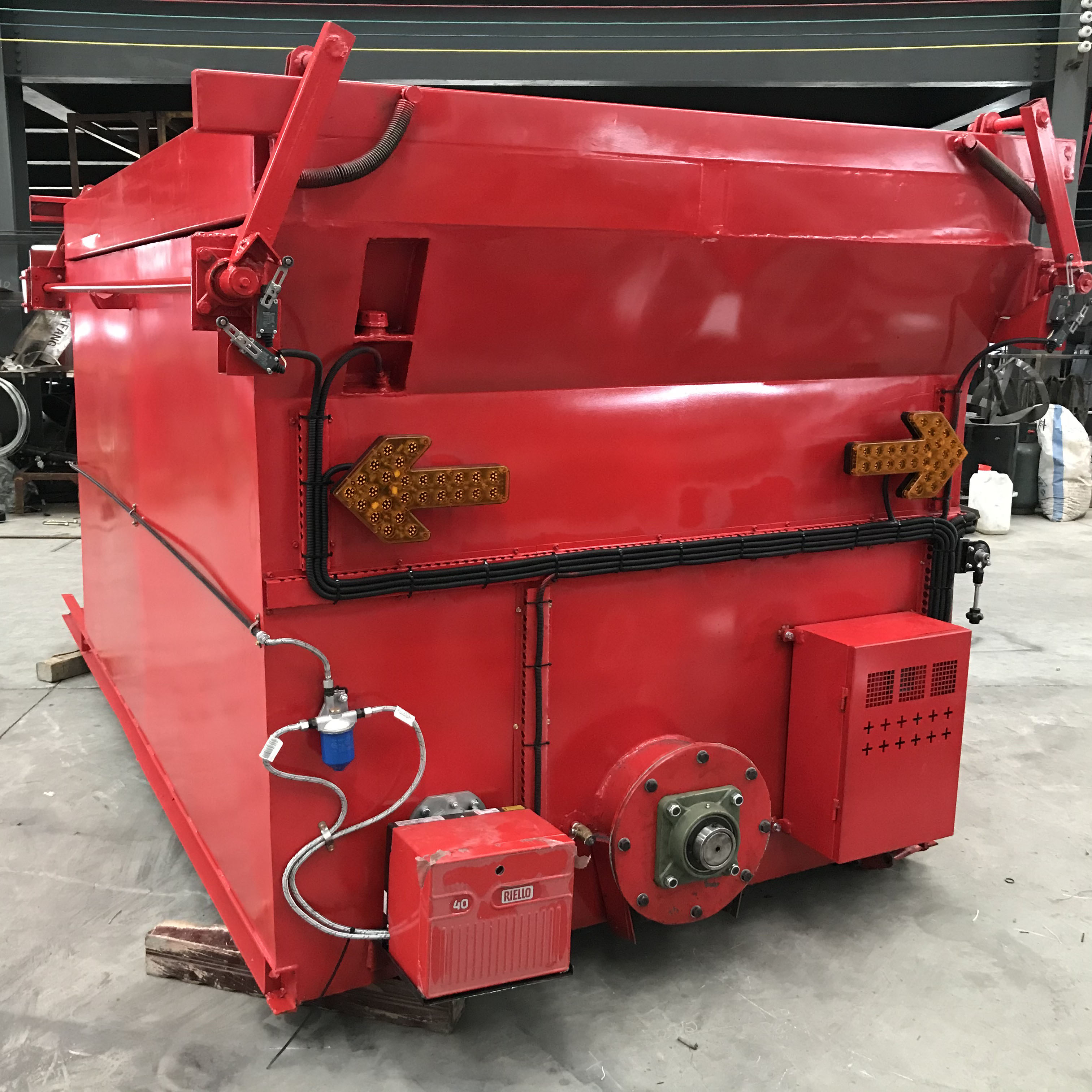

Burner |
Burner: 464T1, ≥100000 kcal imported Riyadh burner, |
Heating way |
diesel tank: 100L Automatic liquid crystal constant temperature control burner, indirect heat transfer oil heating, special fire path design, uniform heat transfer oil heating in multiple compartments, high thermal efficiency, fast heating speed, average heating per warehouse ≤ 25 minutes |
Heat transfer oil |
L-QC320 Changcheng |
Heat transfer oil capacity |
≥500L |
Door opening and closing method: |
electric automatic opening and closing insulation door 750W double motor control opening and closing. |
Stirring output: |
driven by a large torque cycloid pinwheel reducer, with crushing function, screw stirring and conveying, and the discharged particles are uniform and uniform |
Control system: |
LCD digital intelligent constant temperature, automatic control of hot melt kettle heating, induction safety protection automatic door, programmable output automatic control, safety flash, double turn headlights |
Size |
3600*1800*2600mm |
Installation method |
Can be used with trucks and truck cranes |
