| Place of Origin: | Anhui,China |
| Brand Name: | Longshun |
| Model Number: | LS-100ZJ |
| Certification: | ISO |
| Minimum Order Quantity: | 1 Set |
| Price: | EXW,FOB,CIF,DAP |
| Packaging Details: | Export wooden packing,or customization |
| Delivery Time: | 3-7 days,15days |
| Payment Terms: | 100% TT advance |
| Supply Ability: | 200 sets per month |
Application:

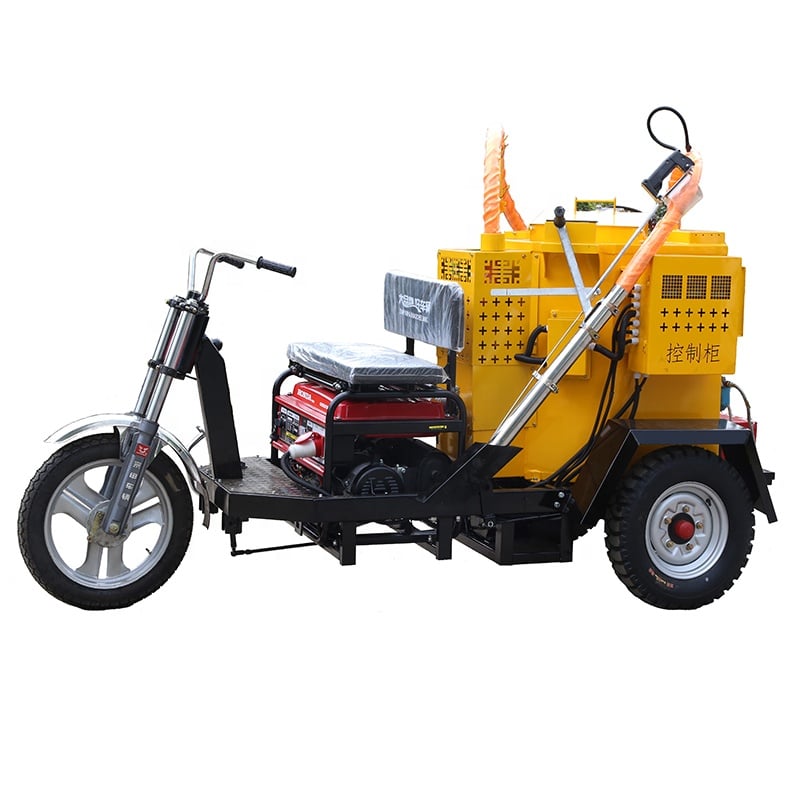

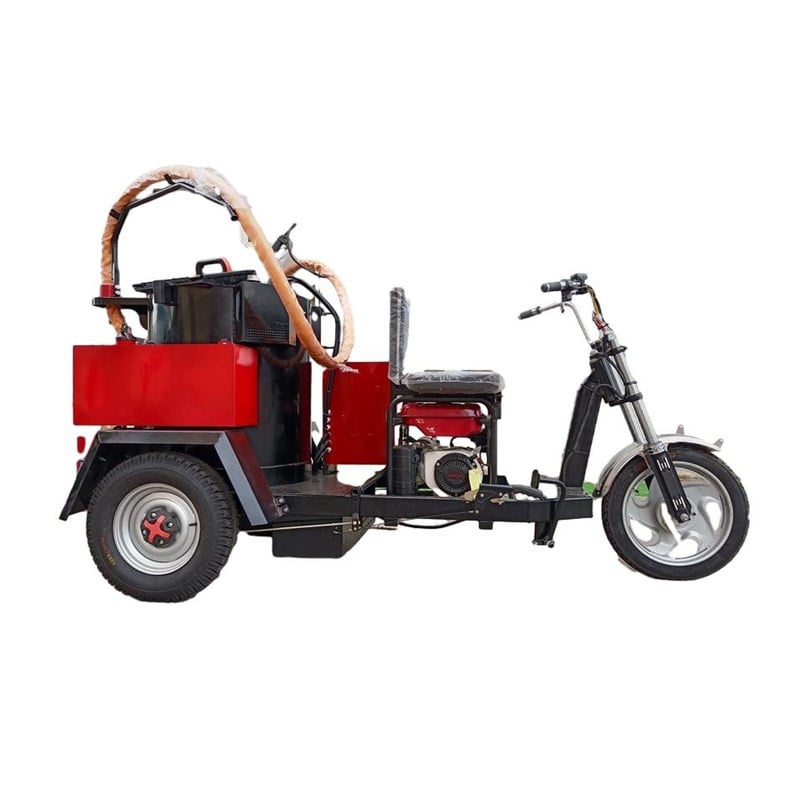

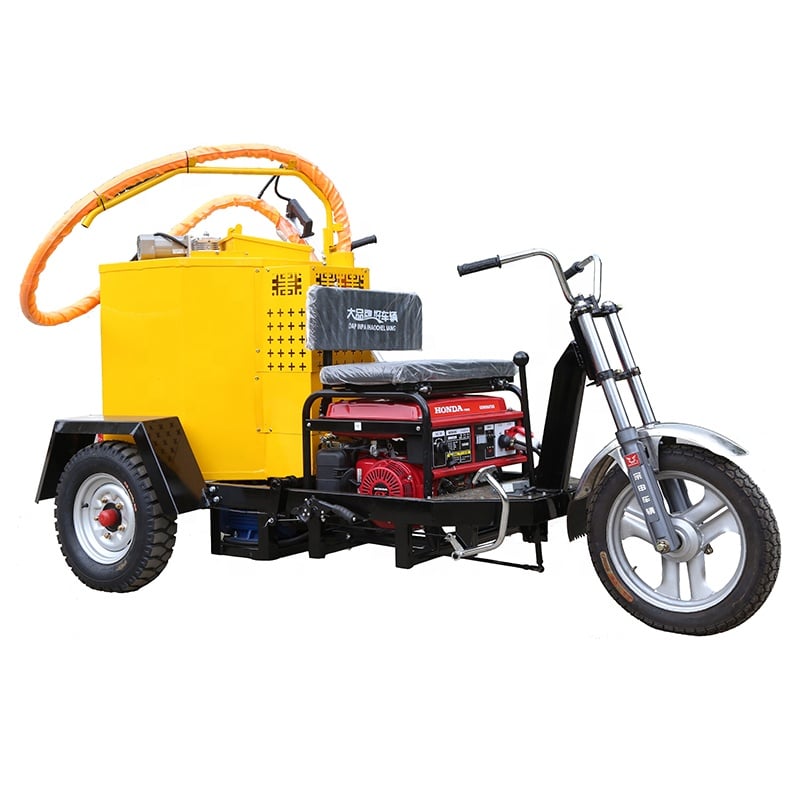

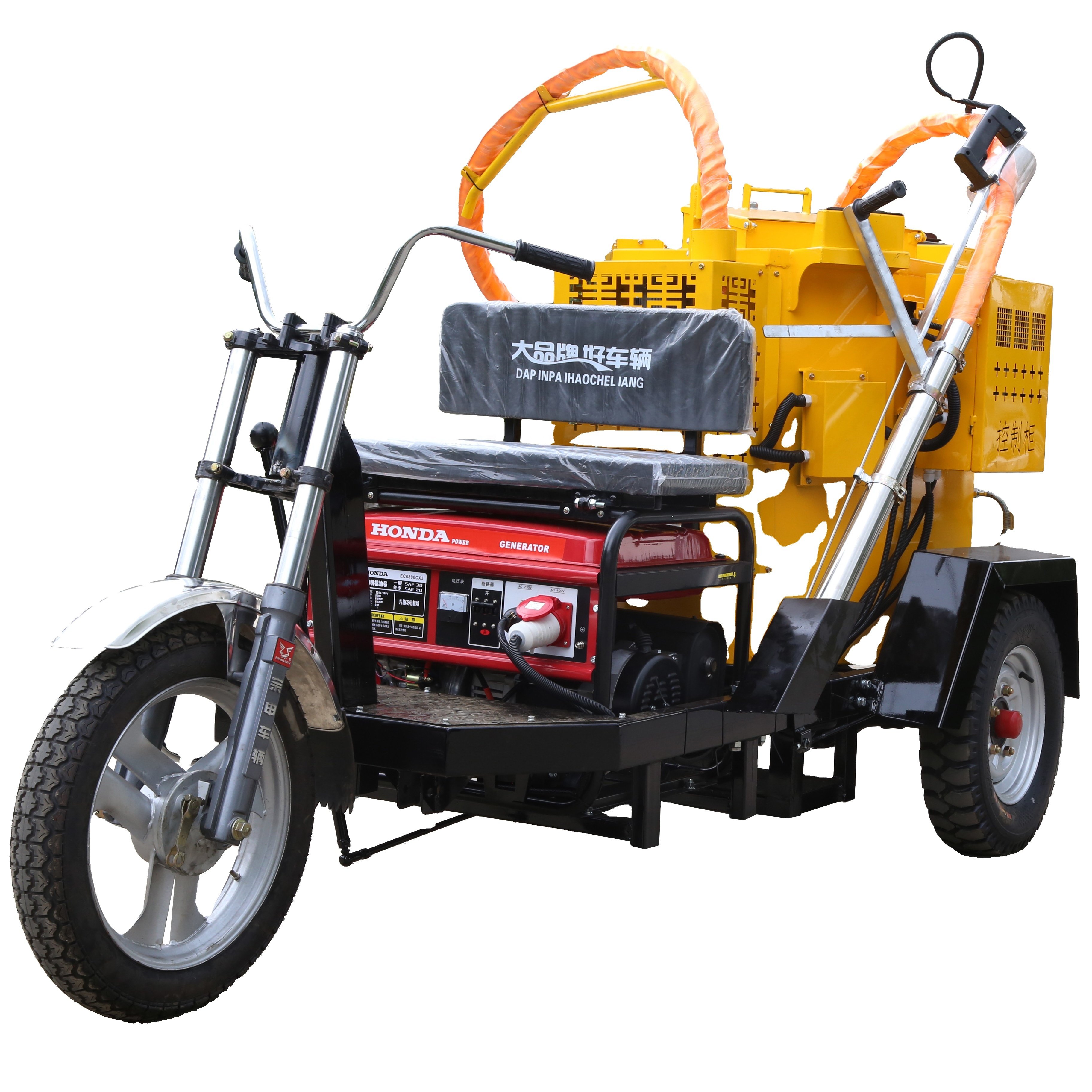

An asphalt crack sealing machine is primarily used for road maintenance and repair. It is designed to fill cracks and joints in roads to prevent water infiltration and extend the lifespan of the road. It finds wide application in urban roads, highways, airport runways, and various other types of roads.
Features:
Automated operation: The machine incorporates advanced automated control systems, enabling functions such as automatic ignition, heating, and spraying. This simplifies the operation and enhances work efficiency.
High-precision spraying: Equipped with specialized spraying devices, the asphalt crack sealing machine achieves high precision in the application process, ensuring even and durable filling of the cracks.
Versatility: The machine can perform various operations, including hot-melt asphalt spraying and cold patch material spraying, making it adaptable to different road maintenance requirements.
Advantages:
Efficient and cost-effective: The asphalt crack sealing machine allows for fast and efficient completion of crack filling works, saving time and labor costs.
Improved road quality: By filling cracks in the road, the machine prevents water infiltration, further damage, and deterioration, thereby enhancing the road's lifespan and overall quality.
Environmentally friendly and reliable: The machine utilizes hot-melt asphalt or cold patch materials for filling, eliminating the need for additional chemicals. This aligns with environmental requirements while ensuring reliable construction results.
In summary, the asphalt crack sealing machine plays a significant role in road maintenance and repair. It efficiently fills cracks and joints, protecting the road and prolonging its lifespan. This, in turn, improves road safety and comfort.
Specifications:
| Model | LS-100ZJ |
| Pressure | 2Mpa |
| Volts | 220V |
| power | 3KW gasoline engine unit |
| Speed | 3600r/min |
| Output speed | 8-15L/min |
| electric heating tube length | 5m |
| Stirring Method | Electric stirring |
| Hot melt kettle volume | 100L |
| Conduction oil | 30L,L-QC320 |
| Mixing motor | 250W |
| Output motor | 400W |
| Moving method | Drive type |
| Combustor | Italy Riello 445T1 combustor |
| Temperature control system | Automatic control by SLA-5000 intelligent digital temperature controller |
| Heating method | Conduction oil indirect heating and extemal oil pump circulating heating |
| Filling material heating time | About 30 minutes |
| Temperature range | 0-280℃ |
| Size | 2900*1200*1650mm |
| Weight | 616kg |
| 1,Independent research and development in IGCC hybrid electric drive technology, low emissions, low energy consumption, energy saving and environmental protection.2,Advanced intelligent ignition, detection of temperature control technology.3,The unique design of oil casing hot melt.4,Unique thermal cycle heating system design.5,Efficient design of discharge system.6,The machine safety low center of gravity design. | |
Quick Detail:
1. Different names for products: road crack sealing machine,road crack sealing equipment,road crack filler,asphalt filler, road crack filling machine; asphalt joint filler,Asphalt caulking machine, expansion joint filler.
2. The main use of the product: Melting asphalt or asphalt sealant, and filling road crack. It efficiently fills cracks and joints, protecting the road and prolonging its lifespan.
Tag:
LS-30,LS-37,LS-60,LS-100,LS-120,LS-200,LS-200N,LS-350,LS-400,LS-500,LS-600,LS-1000
