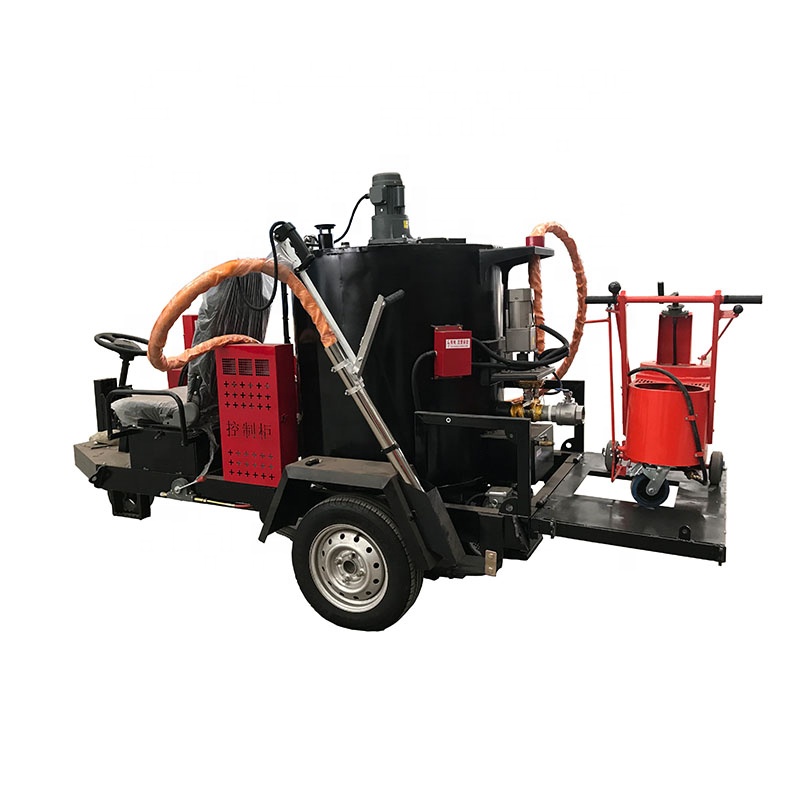

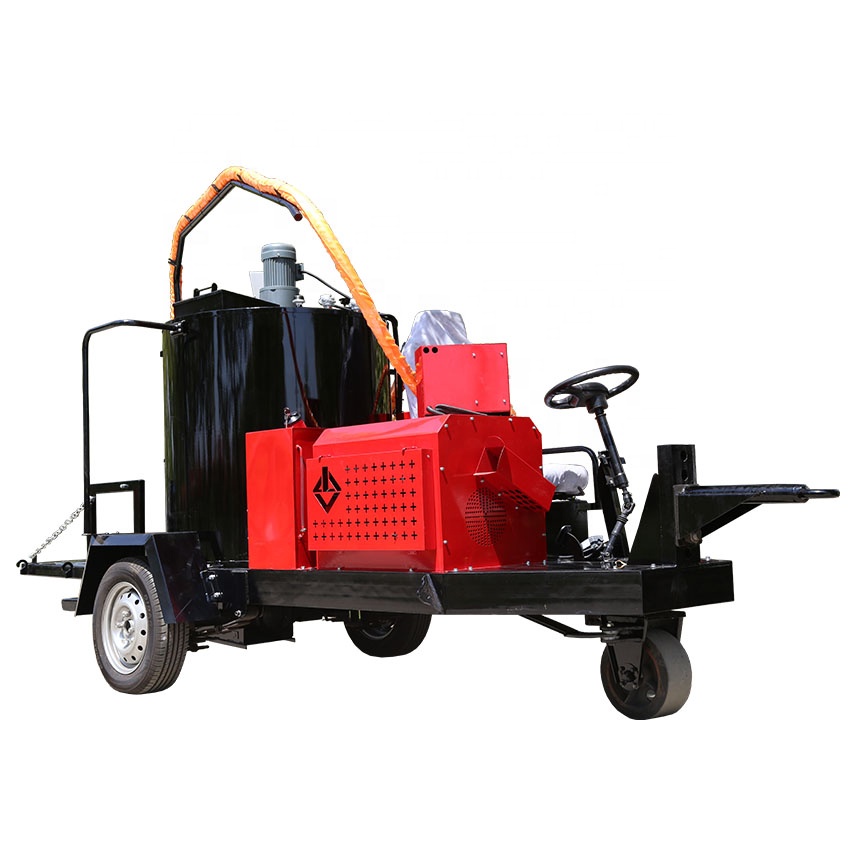

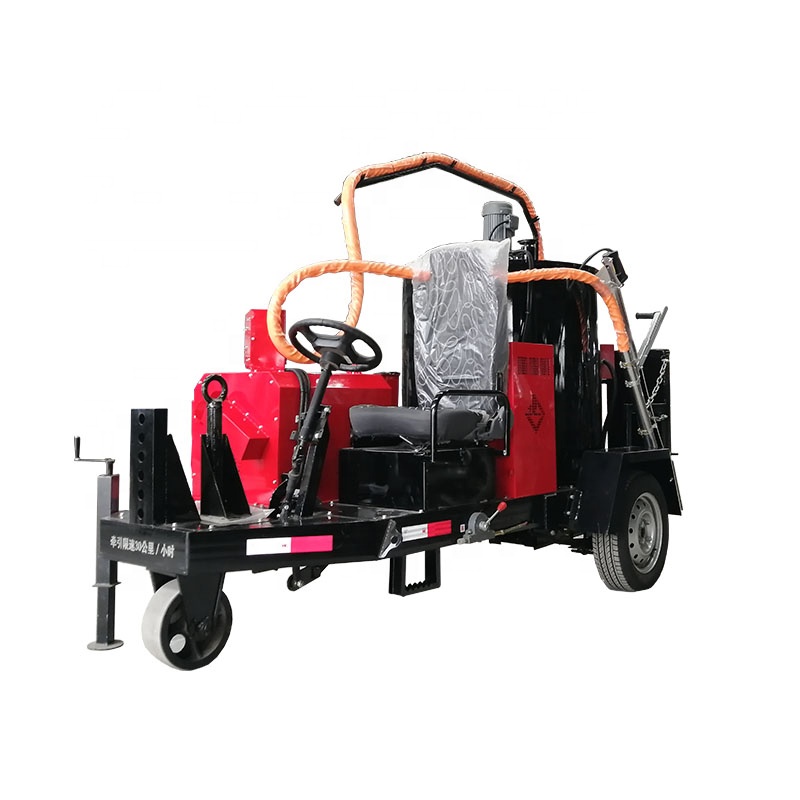

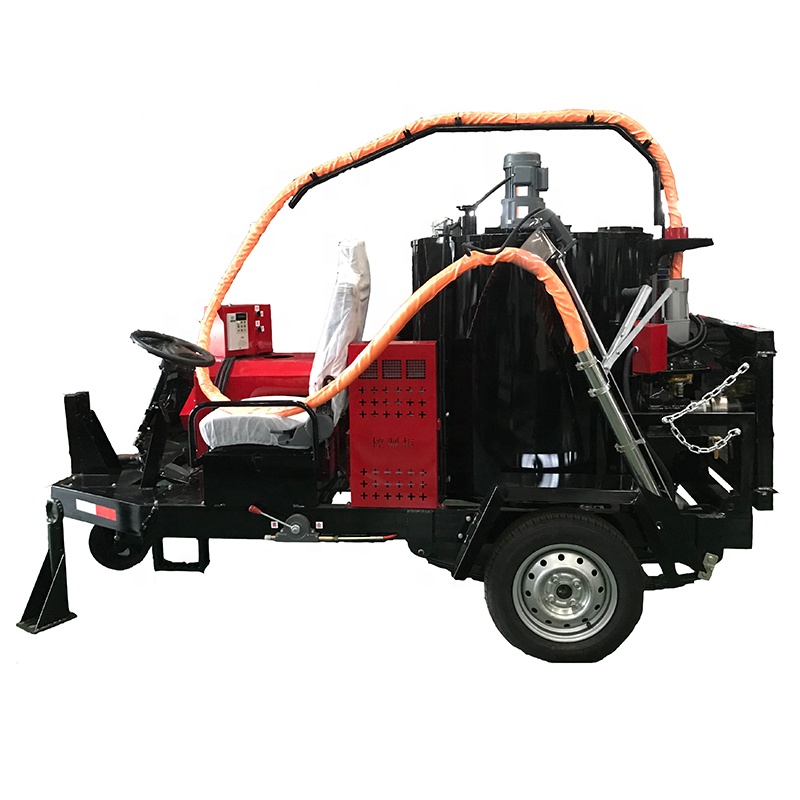

Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ

Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-350ZJ

  • Introduction

Introduction

Place of Origin: Anhui,China
Brand Name: Longshun
Model Number: LS-350ZJ
Certification: ISO


Minimum Order Quantity: 1 Set
Price: EXW,FOB,CIF,DAP
Packaging Details: Export wooden packing,or customization
Delivery Time: 3-7 days,15days
Payment Terms: 100% TT advance
Supply Ability: 200 sets per month


Application:

An asphalt crack sealing machine is primarily used for road maintenance and repair. It is designed to fill cracks and joints in roads to prevent water infiltration and extend the lifespan of the road. It finds wide application in urban roads, highways, airport runways, and various other types of roads.



Features:

Automated operation: The machine incorporates advanced automated control systems, enabling functions such as automatic ignition, heating, and spraying. This simplifies the operation and enhances work efficiency.

High-precision spraying: Equipped with specialized spraying devices, the asphalt crack sealing machine achieves high precision in the application process, ensuring even and durable filling of the cracks.

Versatility: The machine can perform various operations, including hot-melt asphalt spraying and cold patch material spraying, making it adaptable to different road maintenance requirements.


Advantages:

Efficient and cost-effective: The asphalt crack sealing machine allows for fast and efficient completion of crack filling works, saving time and labor costs.

Improved road quality: By filling cracks in the road, the machine prevents water infiltration, further damage, and deterioration, thereby enhancing the road's lifespan and overall quality.

Environmentally friendly and reliable: The machine utilizes hot-melt asphalt or cold patch materials for filling, eliminating the need for additional chemicals. This aligns with environmental requirements while ensuring reliable construction results.

In summary, the asphalt crack sealing machine plays a significant role in road maintenance and repair. It efficiently fills cracks and joints, protecting the road and prolonging its lifespan. This, in turn, improves road safety and comfort.



Specifications:

Model LS-350ZJ
Pressure 6-9Mpa
Volts 220V
power 5KW
Speed 3600r/min
Output speed 8-33L/min
electric heating tube length 7m
Stirring Method Electric stirring
Hot melt kettle volume 350L
Conduction oil  80L,L-QC320
Mixing motor 750W
Output motor 400W
Moving method trailer type+Drive type
Combustor Italy Riello 445T1 combustor
Temperature control system Automatic control by SLA-5000 intelligent digital temperature controller
Heating method Conduction oil indirect heating and extemal oil pump circulating heating
Filling material heating time About 30 minutes
Temperature range 0-280℃
Size 4000*1560*2160 mm
Weight 1050kg
LS-350 is a crack sealing machine produced for melting and pouring the bitumen sealing compounds order to seal crack / seams and provide waterproofing for repair and construction work on highways, airfields, bridges.High power: 6.5 KW Honda engine unit.Heating way:Italy 445T1 diesel burnerElectric hose:7 meters fully electric hose,constant temperature heating.SL-5000 Control  pannel.Rear mount: can hold about 250 kgs .


Quick Detail:

1. Different names for products: road crack sealing machine,road crack sealing equipment,road crack filler,asphalt filler, road crack filling machine; asphalt joint filler,Asphalt caulking machine, expansion joint filler.

2. The main use of the product: Melting asphalt or asphalt sealant, and filling road crack. It efficiently fills cracks and joints, protecting the road and prolonging its lifespan.


Tag:

LS-30,LS-37,LS-60,LS-100,LS-120,LS-200,LS-200N,LS-350,LS-400,LS-500,LS-600,LS-1000
