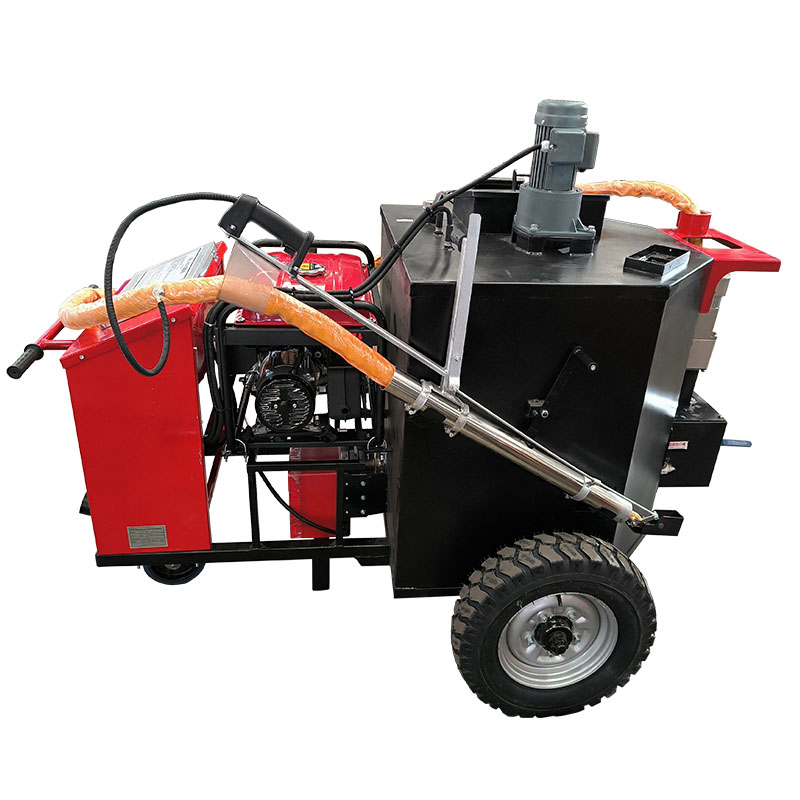

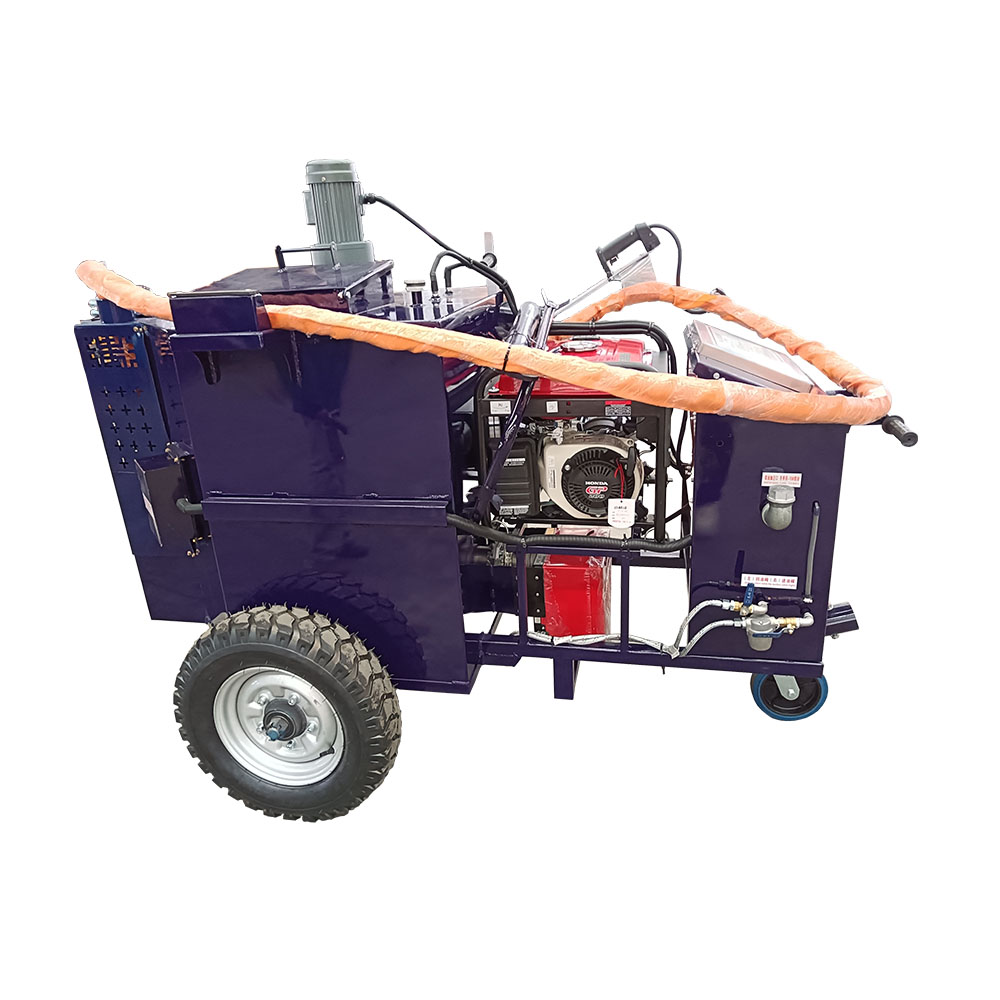

Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-200
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-200
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-200
Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-200

Factory supplies different types of asphalt crack sealing machine in road pavement repair, LS-200

  • Introduction

Introduction

Place of Origin: Anhui,China
Brand Name: Longshun
Model Number: LS-200
Certification: ISO


Minimum Order Quantity: 1 Set
Price: EXW,FOB,CIF,DAP
Packaging Details: Export wooden packing,or customization
Delivery Time: 3-7 days,15days
Payment Terms: 100% TT advance
Supply Ability: 200 sets per month


Application:

An asphalt crack sealing machine is primarily used for road maintenance and repair. It is designed to fill cracks and joints in roads to prevent water infiltration and extend the lifespan of the road. It finds wide application in urban roads, highways, airport runways, and various other types of roads.



Features:

Automated operation: The machine incorporates advanced automated control systems, enabling functions such as automatic ignition, heating, and spraying. This simplifies the operation and enhances work efficiency.

High-precision spraying: Equipped with specialized spraying devices, the asphalt crack sealing machine achieves high precision in the application process, ensuring even and durable filling of the cracks.

Versatility: The machine can perform various operations, including hot-melt asphalt spraying and cold patch material spraying, making it adaptable to different road maintenance requirements.


Advantages:

Efficient and cost-effective: The asphalt crack sealing machine allows for fast and efficient completion of crack filling works, saving time and labor costs.

Improved road quality: By filling cracks in the road, the machine prevents water infiltration, further damage, and deterioration, thereby enhancing the road's lifespan and overall quality.

Environmentally friendly and reliable: The machine utilizes hot-melt asphalt or cold patch materials for filling, eliminating the need for additional chemicals. This aligns with environmental requirements while ensuring reliable construction results.

In summary, the asphalt crack sealing machine plays a significant role in road maintenance and repair. It efficiently fills cracks and joints, protecting the road and prolonging its lifespan. This, in turn, improves road safety and comfort.



Specifications:

Model LS-200
Pressure  2Mpa
Volts 220V
power 2.8KW
Speed 3600r/min
Output speed 8-15L/min
electric heating tube length 5m
Stirring Method Electric stirring
Conduction oil  50L,L-QC320
Hot melt kettle volume 200L
Mixing motor 400W
Output motor 400W
Moving method Hand push or pull
Combustor Italy Riello 445T1 combustor
Temperature control system Automatic control by SLA-5000 intelligent digital temperature controller
Heating method Conduction oil indirect heating and extemal oil pump circulating heating
Filling material heating time About 30 minutes
Temperature range 0-280℃
Size 2150*1250*1550mm
Weight 515kg
1. Independent research and development on integrated hybrid electric and electric drive technology, low emissions, low energy,    energy conservation and environmental protection. 2. Advanced intelligent ignition, detection of temperature control technology. 3. The design of the hot melt kettle with unique oil sleeve. 4. The only thermal cycle heating system design. 5. The highly effective discharge system design. 6. The security design of low center of gravity. 7. Electric stirring. 8. Relief valve full cycle output, heat faster, more flareout, to ensure that the user security of person


Quick Detail:

1. Different names for products: road crack sealing machine,road crack sealing equipment,road crack filler,asphalt filler, road crack filling machine; asphalt joint filler,Asphalt caulking machine, expansion joint filler.

2. The main use of the product: Melting asphalt or asphalt sealant, and filling road crack. It efficiently fills cracks and joints, protecting the road and prolonging its lifespan.


Tag:

LS-30,LS-37,LS-60,LS-100,LS-120,LS-200,LS-200N,LS-350,LS-400,LS-500,LS-600,LS-1000
